規格specification
|

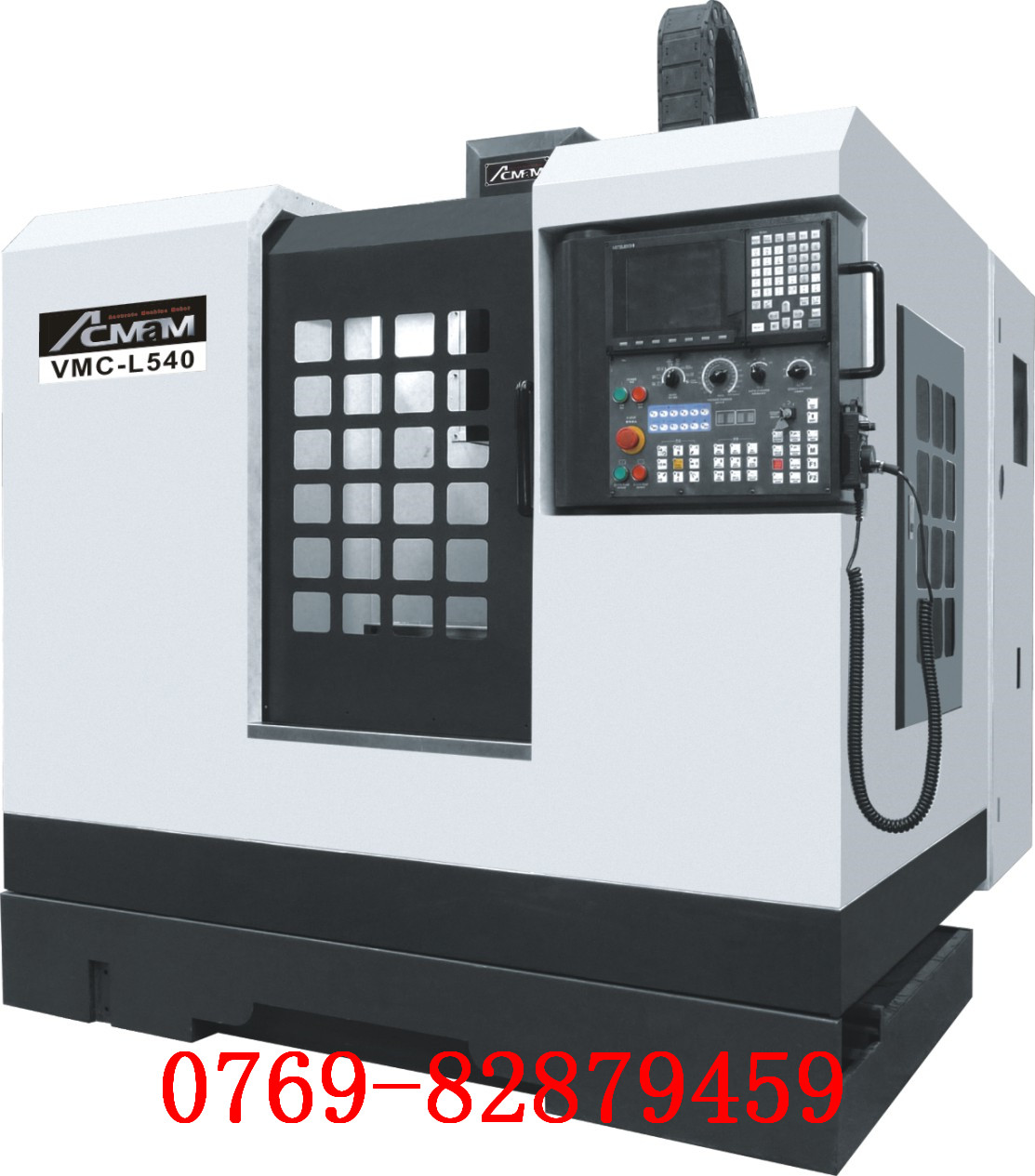

VMC-L540
|
|
X軸行程X - Axis Travel
|
500mm
|
|
Y軸行程Y - Axis Travel
|
400mm
|
|
Z軸行程Z - Axis Travel
|
400mm
|
|
主軸端面至工作臺距離Spindle Nose To Table
|
120-540mm
|
|
主軸中心至滑道面距離Spindle Center To Z-Rail
|
410mm
|
|
工作臺尺寸Table Size
|
600*380mm
|
|
T型槽（槽數*寬*間距）T - Slot
|
3*18mm*100mm
|
|
大荷重Maximum Table Load
|
300kg
|
|
刀具錐度Spindle Taper
|
BT40/BT30
|
|
轉速Spindle RPM
|
8000rpm/12000rpm/24000rpm
|
|
傳動方式Type Of Driving
|
皮帶式Belt Type/直結式Direct Type/
內藏式Built-In Type
|
|
X、Y軸快送X. Y Axis Rapid Feed Rate
|
30m/min
|
|
Z軸快送Z Axis Rapid Feed Rate
|
30m/min
|
|
X、Y、Z大切削進給速度
X. Y. Z Max. Cutting Feed Rate
|
10m/min
|
|
斗笠式Geneva Type (Tool to Tool)
|
12T
|
|
刀臂式Arm Type (Tool to Tool)
|
16T
|
|
主軸馬達Spindle Motor
|
SJ-PF5.5(5.5kw)/ Beta 6 (5.5kw)
|
|
X、Y軸向馬達X. Y Servo Motor
|
HF-154 (1.5kw)/ Beta 6 (1.2kw)
|
|
Z軸向馬達Z Servo Motor
|
HF-204BS(2.0kw)/Beta 22 (2.5kw)
|
|
切削水馬達Coolant Pump Motor
|
670W
|
|
刀庫馬達Motor of tool Change System
|
斗笠式Geneva Type 60W /刀臂式 Arm Type 200W
|
|
排屑馬達Chip Conveyor Motor
|
1/4HP
|
|
定位精度（JIS標準）Positioning Accuracy (JIS)
|
+ /-0.005mm/300mm
|
|
重復精度（JIS標準）
Repeat Positioning Accuracy (JIS)
|
+ /-0.003mm
|
|
機械占地面積（長*寬*高）
Floor Space Measurement
|
1910*2000*2450
|
|
機械包裝尺寸（長*寬*高）
Packaging Measurement
|
2010*2100*2550
|
|
機械重量（約）Approximate Weight
|
2800kg
|
